Compozer (Sand Compaction Pile, SCP)

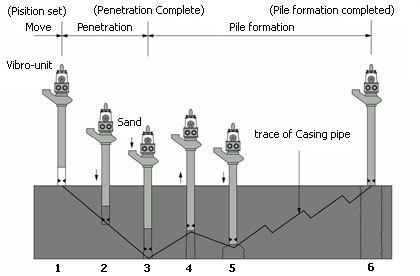

Implementation Procedure

  • 1. Casing pipe is correctly positioned.

  • 2. Casing pipe is driven into the ground using a vibro-hammer.

  • 3. When it reaches the required depth, the casing pipe is charged with a specified volume of sand.

  • 4. As the casing pipe is raised by a specified margin, the sand is discharged into the ground using compressed air.

  • 5. The sand pile is compacted and enlarged by driving the pipe back down into the sand.

  • 6. The pipe-raising, sand discharge and re-driving procedure is repeated numerous times as the pipe is gradually removed, forming a complete compacted sand pile.
