Save Compozer(NON-Vibratory SCP)

implementation_procedure

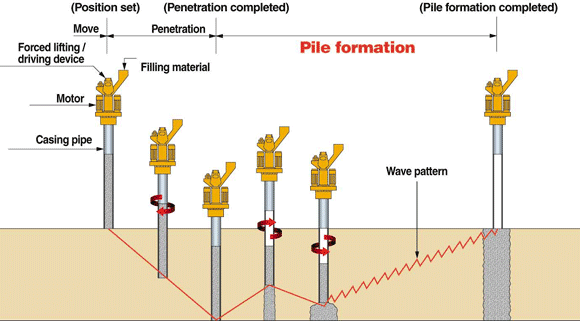

Implementation Procedure

  • 1.Casing pipe is positioned and predetermined quantity of filling material is charged into the casing.

  • 2.Casing is rotated and driven smoothly into the ground.

  • 3.Casing is fully penetrated to the designated depth.

  • 4.While casing is lifted by predetermined height, filling material is discharged from the casing.

  • 5.Casing is re-driven to compact discharged filling material and surrounding ground.

  • 6.Steps 4 and 5 are repeated by using a wave pattern and casing is gradually lifted, consequently formation of an enlarged pile is achieved.
